Features

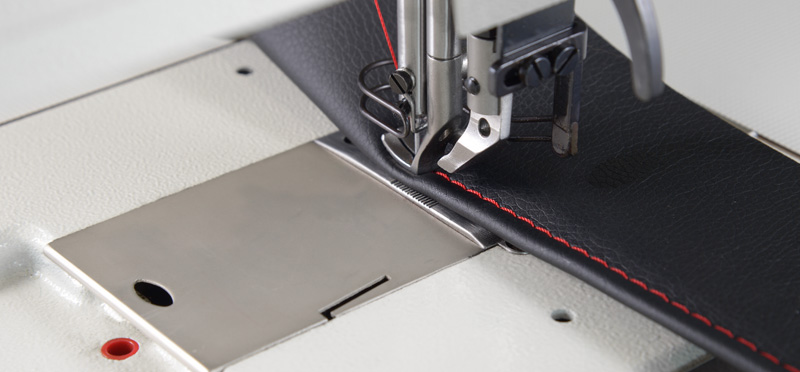

High traction due to unison feed

Even feed motion without any ply-shift of individual layers

Large vertical rotary hook with 60% more bobbin thread capacity than other standard-sized hooks (capacity with 40/3 threads: 50 m)

Automatic hook lubrication

Efficient hook protection against thread jamming due to standard built-in overload coupling (M)

Rugged and durable machine construction

The high top feed lift (7 mm) allows trouble-free sewing of thick materials and an easy sewing over cross seams

Easy to service

Easy loading and unloading – even of bulky material – due to a high fabric clearance of 14 mm

Original PFAFF Industrial machines have an additional security label with several security features on the machine head. The advantage of this security label is the protection against growing product piracy

Options

Thread trimmer

Backtacking system

Automatic presser foot lift

Applications

Sewing of medium-heavy materials, e.g. furniture and car upholstery, leather clothing, leather goods, etc.

Specifications

Needle system: 134-35 LR

Needle size: 110 - 150 Nm

Max. sewing speeds: 2.800 s.p.m

Max. stitch length: 8,0 mm

Stitch type: 301 (Lockstitch)

Clearance under the sewing foot: max. 14,0 mm

Clear workspace: 270 x 115 mm

Connection voltage: single-phase a.c. 230 V, 50/60 Hz
